Commercial & Industrial, Model Search List
Model	Model Description	Drawings Revit/DWG	Drive Type	Min Flow	Max Flow	Min Pressure	Max Pressure	Max Temperature

Commercial & Industrial, Model Search List
Commercial & Industrial, Model Search List
METAL WALL EXHAUST FANS

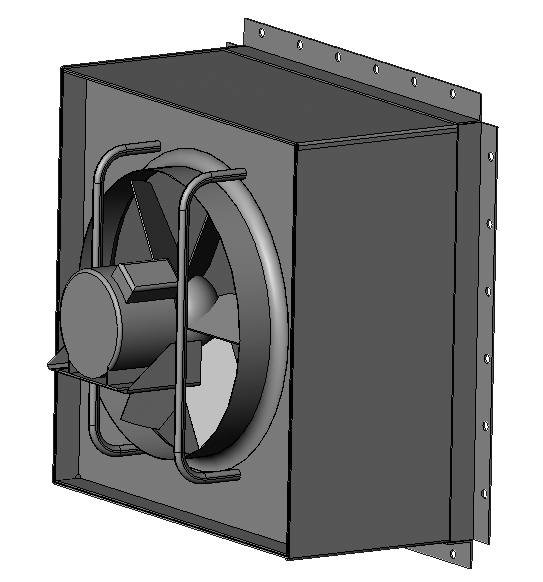

			~ With Housing Assembled; Propeller; Wall Collar Panel Fan
FQWCP	Direct Drive Propeller Wall Collar Exhaust, Quiet	15/19	Direct	150 cfm	17800 cfm	0.000 in wg	0.875 in wg	135 F

			~ With Housing Assembled; Aluminum Panel & Prop; Galv or Aluminum Slant Wall Housing

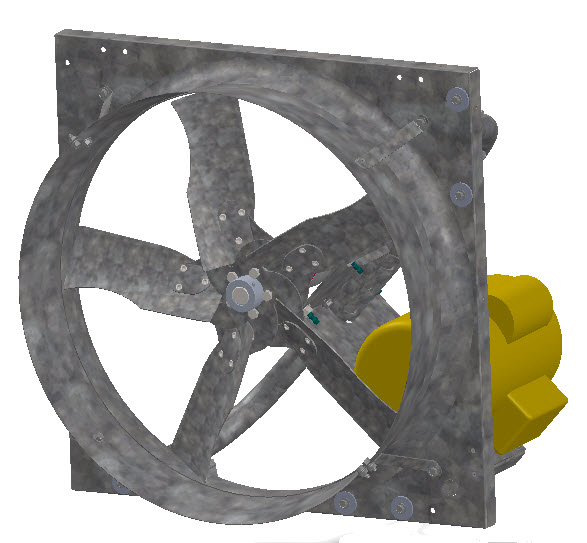

DCAWS	Belt Drive Propeller Wall Fan	0/0	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			~ With Housing Assembled; Galvanized Panel & Prop; Galvanized Slant Wall Housing

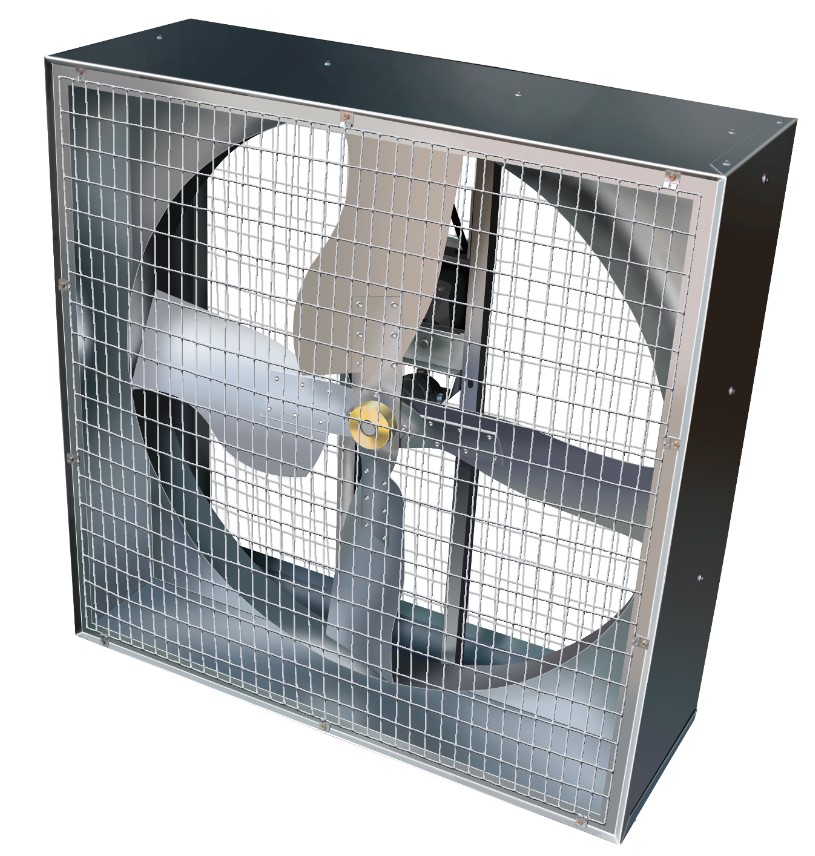

BDRWS	Propeller Wall Fan	0/0	Belt	0 cfm	28600 cfm	0.000 in wg	0.150 in wg	135 F

			~ With Housing Assembled; Galvanized Panel & Prop; Galvanized Housing
BDR-C	Propeller Wall Fan With Cone	0/0	Belt	0 cfm	30000 cfm	0.000 in wg	0.250 in wg	104 F
BDRC	Propeller Wall Fan With Cone	0/0	Belt	0 cfm	30000 cfm	0.000 in wg	0.300 in wg	135 F
BDRV	Propeller Wall Fan	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ With Housing Assembled; Powder Coated Steel Panel & Prop; Galvanized Slant Wall Housing
DCWS	Belt Drive Propeller Slant Wall Housing Fan	0/0	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			~ With Housing Assembled; Powder Coated Steel Panel & Prop; Commerical Square Galvanized Housing
DCHWBP	Belt Drive Propeller Wall Box Exhaust Fan, Heavy Duty	0/0	Belt	15650 cfm	77240 cfm	0.000 in wg	0.250 in wg	135 F
DCKWBP	Belt Drive Propeller Wall Box Exhaust Fan	0/16	Belt	2200 cfm	73080 cfm	0.000 in wg	0.750 in wg	135 F
DCWBP	Belt Drive Propeller Wall Box Exhaust Fan	0/12	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			~ With Housing Assembled; Aluminum Propeller & Coated Steel Panel; Commerical Square Galvanized Housing
FQWBP	Direct Drive Propeller Wall Box Exhaust Fan, Quiet	15/20	Direct	150 cfm	17800 cfm	0.000 in wg	0.875 in wg	135 F

			~ With Housing Knock Down; Aluminum Panel & Prop; Galv or Alum Slant Wall Housing KD
DCAWSKD	Belt Drive Propeller Wall Fan Aluminum Knocked Down	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ With Housing Knock Down; Aluminum Panel & Prop; Galvanized Square Wall Housing
DCAWBKD	Belt Drive Propeller Wall Box Exhaust Fan Aluminum	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ With Housing Knock Down; Powder Coated Steel Panel & Prop; Galvanized Slant Wall Housing KD
DCWSKD	Belt Drive Propeller Wall Exhaust Fan Knocked Down	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ With Housing Knock Down; Powder Coated Steel Panel & Prop; Galvanized Square Wall Housing
DCWBKD	Belt Drive Propeller Wall Box Exhaust Fan Knocked Down	0/0	Belt	0 cfm	26610 cfm	0.000 in wg	0.150 in wg	104 F


COMPOSITE WALL EXHAUST FANS - ASSEMBLED
			~ Stainless Prop & Supports; Stainless Steel With Fiberglass Housing; Use with Separate Cone
DDPSB	Corrosion Resistant Fan	0/0	Belt	25000 cfm	42000 cfm	0.000 in wg	0.375 in wg	135 F

			~ Stainless Prop & Supports; Stainless Steel with Rotomolded Housing; With Cone Standard
DDPSD	Corrosion Resistant Fan	0/0	Direct	25000 cfm	42000 cfm	0.000 in wg	0.375 in wg	135 F

			~ Stainless Prop & Supports; Stainless Steel With Fiberglass Housing; Use with Separate Cone
DDPVSS	Corrosion Resistant Fan - SS	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Galvanized Prop and Supports; Heavy Duty / High Air Flow; Horizontal Housing Fiberglass Housing
DDPVG	Corrosion Resistant Fan - Galvanized	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Galvanized Prop and Supports; Heavy Duty / High Air Flow; Horizontal Galvanized with Composit Housing
DXPG	Propeller Wall Fan - Galvanized	0/0	Belt	0 cfm	42000 cfm	0.000 in wg	0.200 in wg	135 F

			~ Stainless Prop & Supports; Heavy Duty / High Air Flow; Horizontal Stainless Steel with Composit Housing
DXPSS	Propeller Wall Fan - SS	0/0	Belt	0 cfm	42000 cfm	0.000 in wg	0.200 in wg	135 F

			~ Galvanized Prop and Supports; Heavy Duty Down Blast; Vertical Galvanized with Composit Housing
DXPGDB	Propeller Wall Fan - Galvanized Down Blast	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Galvanized Prop and Supports; Heavy Duty Down Blast; Vertical Galvanized with Fiberglass Housing
DDPVGDB	Corrosion Resistant Fan Downblast - Galvanized	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Galvanized Prop and Supports; Surface Mount Exhaust Fan; Composite Housing

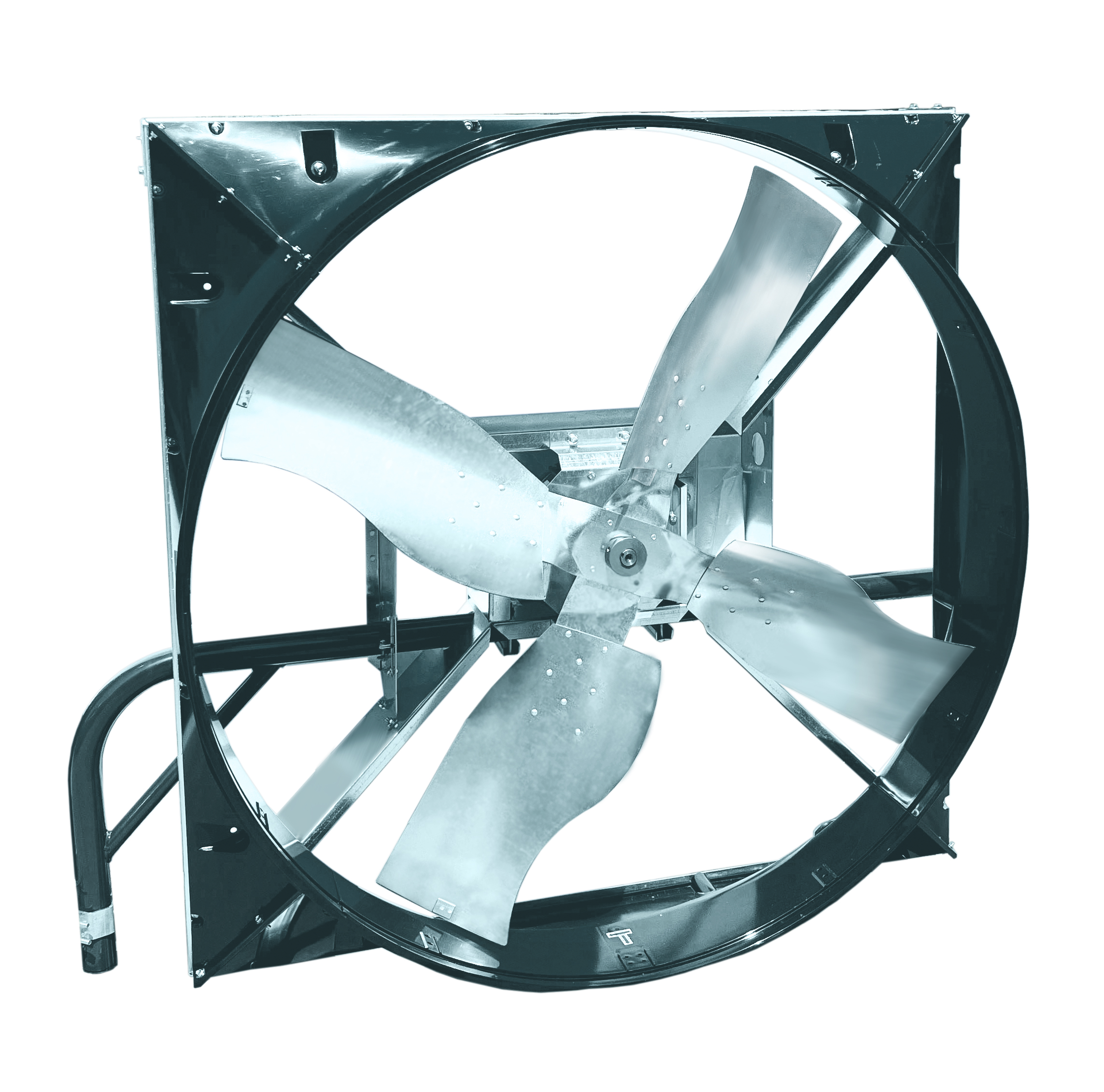

MFS	Propeller Wall Fan	0/0	Belt	0 cfm	36000 cfm	0.000 in wg	0.500 in wg	135 F
MFSPB	Propeller Wall Fan	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Galvanized Prop and Supports; Heavy Duty / High Air Flow; DXPGDD Conversion from ETM to IME
DXPGDDAC	DXPGDD Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F


FRESH AIR SUPPLY
			Fan Jet Supply Tube Fan; Fan Jet Supply Fan; With Housing
RR	Fan-Jet Belt Drive	0/0	Belt	6960 cfm	10600 cfm	0.000 in wg	0.200 in wg	135 F


AIR CIRCULATION AND DESTRATIFICATION FANS
			~ Roof Mount Exhaust Fans; Exhaust Fan; Aluminum Hood Housing and Propeller
EC	Belt Drive Square Hood Exhaust Ventilator	0/8	Belt	1000 cfm	18990 cfm	0.000 in wg	0.500 in wg	135 F
ECH	Belt Drive Square Hood Exhaust Ventilator, Heavy Duty	0/14	Belt	1200 cfm	74200 cfm	0.000 in wg	1.100 in wg	135 F

			~ Roof Mount Exhaust Fans; Upblast Propeller High Volume; Butterfly Damper
UBG	Belt Drive Upblast Exhauster	0/16	Belt	3769 cfm	83373 cfm	0.000 in wg	0.750 in wg	135 F

			~ Roof Mount Exhaust Fans; Upblast Propeller; Motor In Airstream
UD	Direct Drive Upblast Exhauster	0 /14	Direct	2560 cfm	31988 cfm	0.000 in wg	0.500 in wg	135 F

			~ Air Mixing Fans; Galvanized Panel & Prop; Open Panel Fan
DC	Belt Drive Propeller Wall Exhaust Fan	1/12	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			~ Air Mixing Fans; Galvanized Panel & Prop; Metal Box

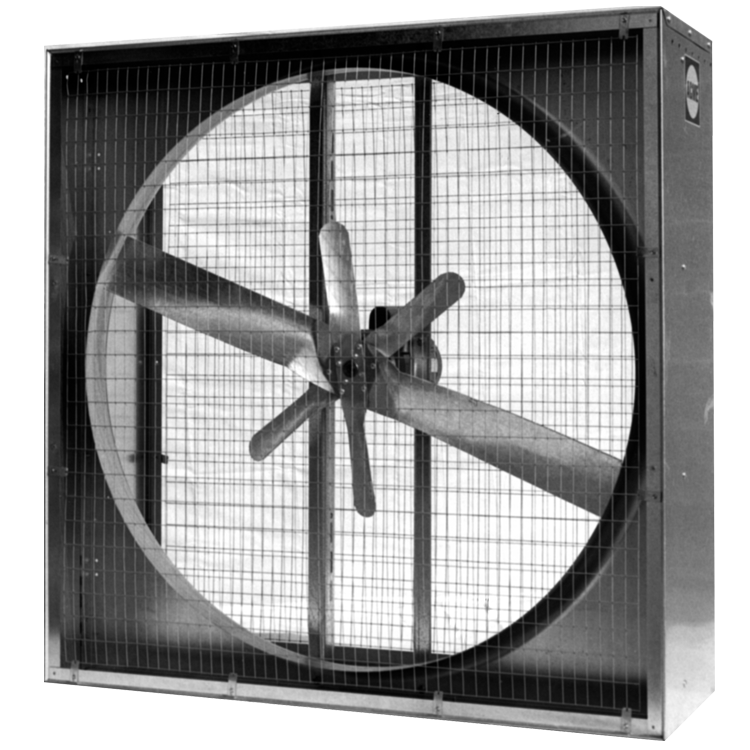

AGD	Propeller Wall Fan	0/0	Direct	5205 cfm	11300 cfm	0.000 in wg	0.150 in wg	135 F

			~ Air Mixing Fans; Aluminum Panel & Prop; Tube Pressurizing Fan
RCAB	Fan-Jet Belt Drive	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCAD	Fan Jet-Direct Drive	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Air Mixing Fans; Hanging Fan; Basket Guard
HAF	Direct Drive Horizontal Air Flow Fan	0/0	Direct	0 cfm	12280 cfm	0.000 in wg	0.000 in wg	135 F

			~ Air Mixing Fans; Hanging Fan; Air Destratification Fan
TUB	Direct Drive Destratification Fan	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet Tubing; Polyethylene 4 mil Thick
TUBING-1	Tubing	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Hangers, Supt Wire, Band Straps
TUBINGAC	Tubing Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Weather Hood Package
RCWH	Fan Jet Hoods	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Heat Kit or Inlet Housing
RCIHWH	Inlet Housing Or Heat Kit	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCTH	Tube Hangers	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCWH	Fan Jet Hoods	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCWK	Supt Wire Assy	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
TUBINGAC	Tubing Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ HAF Accessories; HAF Mounting Bracket; Wall or Ceiling
Brackets	Brackets	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

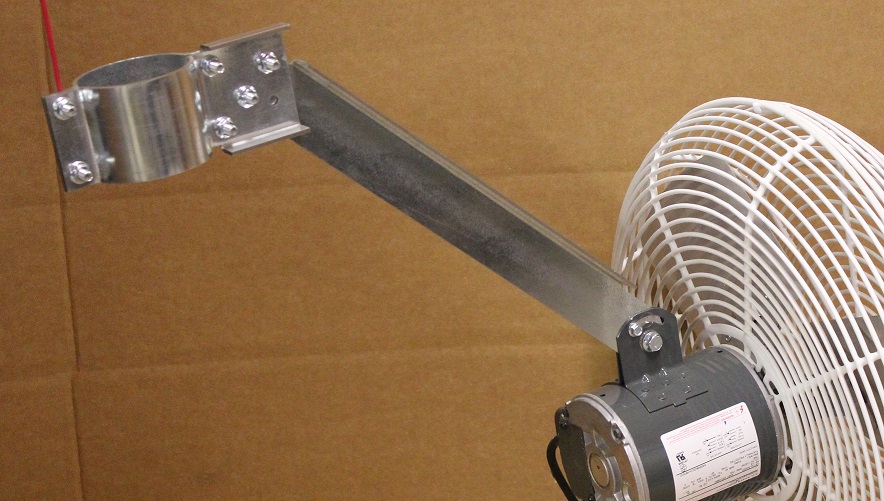

			~~ HAF Accessories; HAF Mounting Bracket; Pipe Mount
Pipe Mnt	Pipe Mount	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Tubulator Accessories; Tubulator Basket Guard; Auxiliary Mount Support
TUBACC	Turbulator Accessory	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Air Mixing Fans; Powder Coated Steel Panel & Prop; Tube Pressurizing Fan
RCB	Fan-Jet Belt Drive	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCD	Fan-Jet Direct Drive	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F


EVAPORATIVE COOLING

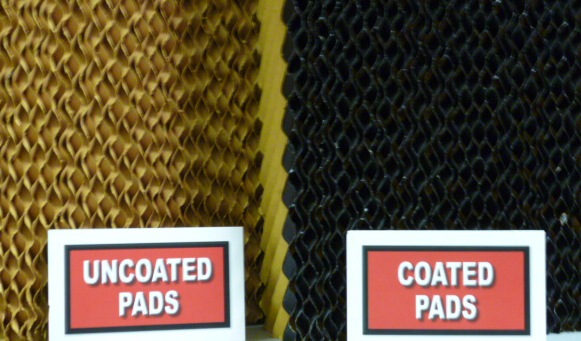

			~ Kool Cel® Pad Systems; Aluminum Top and PVC Extruded Bottom 4 in Pads; Closed Top Self Contained
CAEG4	Closed Aluminum Top with Extruded Gutter	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Kool Cel® Pad Systems; Stainless Steel Top and PVC Ext. Bottom 6 in Pads; Closed Top Self Contained
CSEG6	Clsed Stainless Steel Top with Extruded Gutter	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~Kool Cel ®Pads Only; ACME Pads --- MUST BE ORDERED IN 4 UNIT INCRIMENTS; 4 In Thick
4" KCP	Kool Cel®	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~Kool Cel ®Pads Only; ACME Pads --- MUST BE ORDERED IN 4 UNIT INCRIMENTS; 6 In Thick
6" KCP	Kool Cel®	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Miscellaneous Components; Pump Tanks; Self-Contained Systems Only
PUMPTANK	Pump Tanks	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Miscellaneous Components; Submersible Pumps; Evaporative Cooling Systems
PUMPS	Pumps	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Miscellaneous Components; Water Valves; Evaporative Cooling Systems
WaterVal	Water Valves	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Miscellaneous Components; Miscellaneous Replacement Parts; Evaporative Cooling Systems
ENDCOVER	CAEG & CSEG End Cover	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
KC ACC	Kool Cel Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Miscellaneous Components; PDRP Replacement Gutter; Extruded Gutter Only
PDRP/OTC	PDRP/OTC Replacement Parts	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F


WALL INLETS
			~ Wall Inlet Shutters; Shutter Motor Actuated; Galvanized Frame Aluminum Blade
WAGC	Back Draft Damper Galv Center Pivot	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Wall Inlet Shutters; Shutter Motor Actuated; Aluminum Frame Aluminum Blade
WAAC	Inlet Shutter Center Pivot Aluminum	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
WAACH	Back Draft Damper Center Pivot Heavy Duty Aluminum	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

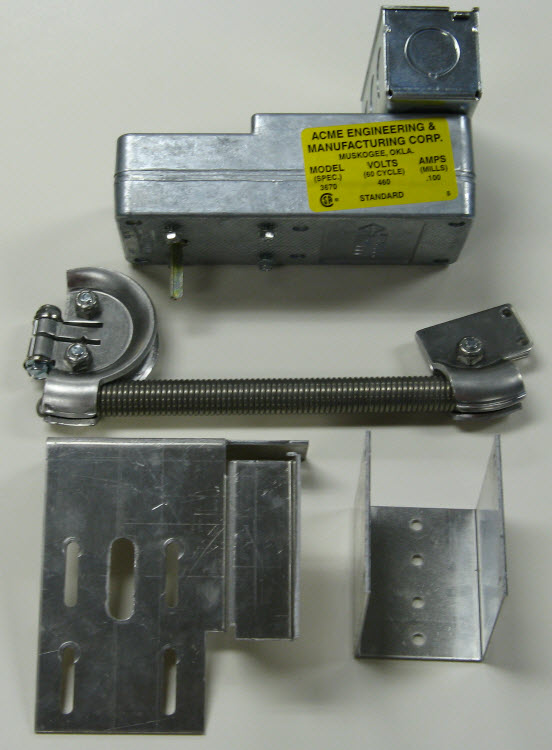

			~~ Inlet Shutter Motorizing Kits; Standard Duty Motorizing Kit; For Single Panel Shutter
MKCam-C	WAG and WAA Family Motorizing Kit	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F


MOTORS
			Replacement Motors; 50/60 Hz 1 & 3 Ph; Motors
MOTORS	Motors	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

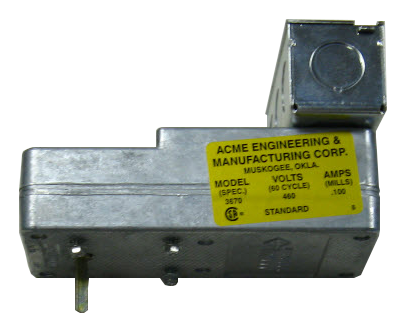

			Replacement Motors; Shutter Replacement Motor; Double and Single Panel Shutters
DMP MOT	Damper Motors	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F


ACCESSORIES
			Equipment For Blocking Light; Light Trap Powder Coat Housing PVC Vanes; Individual Wall Mount
LTP	Light Traps Height X Width	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Equipment For Blocking Light; Light Trap Powder Coat Housing PVC Vanes; Mount Over Fan
LTPF	Light Traps For Fans Height X Width	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Equipment For Blocking Light; Light Trap Powder Coat Housing PVC Vanes; Mount Over Inlet Shutter
LTPI	Light Traps For Shutters Height X Width	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Equipment For Blocking Light; Light Trap Powder Coat Housing PVC Vanes; Continuous Wall Mount
LTPC	Light Traps Continuous Height X Width	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			LTPC Corner Trim; LTPC End Pieces; One Set Per Bank of LTPC
LTACC	Light Trap Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Fan Only; Aluminum Panel & Prop; Fan Only
DCA	Belt Drive Propeller Wall Fan Aluminum	0/0	Belt	1300 cfm	27720 cfm	0.000 in wg	0.300 in wg	13 F
DCH	Belt Drive Propeller Wall Exhaust Fan, Heavy Duty	0/0	Belt	15650 cfm	77240 cfm	0.000 in wg	0.250 in wg	135 F
DCK	Belt Drive Propeller Wall Exhaust Fan	0/16	Belt	2200 cfm	73080 cfm	0.000 in wg	0.750 in wg	135 F

			Fan Only; Powder Coated Steel Panel & Prop; Fan Only
DC	Belt Drive Propeller Wall Exhaust Fan	1/12	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			Fan Only; Aluminum Propeller & Coated Steel Panel; Fan Only
FN	Direct Drive Propeller Wall Exhaust Fan	13/18	Direct	0 cfm	22400 cfm	0.000 in wg	1.000 in wg	135 F
FQ	Direct Drive Propeller Wall Exhaust Fan, Quiet	15/20	Direct	100 cfm	17800 cfm	0.000 in wg	0.875 in wg	135 F

			Fan Housings; Wall Slant Box; Galvanized Housing
WS	Wall Slant Housing	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Fan Housings; Square Wall Box; Galvanized Housing
WB	Wall Box	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
WS	Wall Slant Housing	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Fan Shutters; Fan Shutters Listed by Fan Model; Boxed For Shippment
SHS	Fan Shutters Listed by Fan Model Shipped Seperate from Fan	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Shutters Barometric; Barometric Shutter; Galvanized Frame Aluminum Blade
WAG	Back Draft Damper Galv	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Shutters Barometric; Barometric Shutter; Aluminum Frame Aluminum Blade
WAA	Back Draft Damper Aluminum	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Belt Tighteners; Belt Tightener; Automatic
BLT-TNR	Belt Tighteners	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Guards; Guard For WS Inlet and Exhaust Or WB Exhaust Or Pa; OSHA Compliant
GS	Guard, Inlet	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Guards; Guard For WB Inlet; OSHA Compliant
GD	Guard, Safety	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
GS	Guard, Inlet	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			contorls; Shutter Replacement Motor; Double and Single Panel Shutters
DMP MOT	Damper Motors	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Shutters Barometric; Barometric Shutter; Galv Frame Aluminum Blade Heavy Duty
WAGH	Back Draft Damper Galv, HD	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Guards; Propeller Side Guard FN FQ; OSHA Compliant
FAFNFQ	OSHA Propeller-Side Guard	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			BDR CONES; BDR Cones; Galvanized
BDR-C AC	BDR-C Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			Shutters Barometric; Barometric Shutter; PVC Frame and Blade
APS	APS Vinyl Shutter Shipped Separate	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
