Commercial & Industrial, Model Search List
Model	Model Description	Drawings Revit/DWG	Drive Type	Min Flow	Max Flow	Min Pressure	Max Pressure	Max Temperature

Commercial & Industrial, Model Search List
Commercial & Industrial, Model Search List
AIR CIRCULATION AND DESTRATIFICATION FANS
			~ Air Mixing Fans; Galvanized Panel & Prop; Open Panel Fan
DC	Belt Drive Propeller Wall Exhaust Fan	1/12	Belt	1300 cfm	27720 cfm	0.000 in wg	0.375 in wg	135 F

			~ Air Mixing Fans; Galvanized Panel & Prop; Metal Box

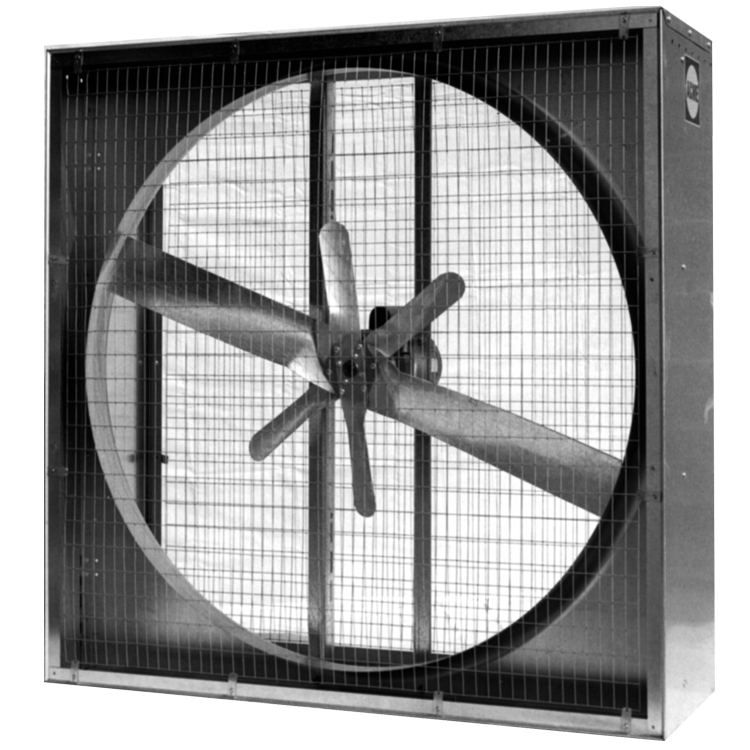

AGD	Propeller Wall Fan	0/0	Direct	5205 cfm	11300 cfm	0.000 in wg	0.150 in wg	135 F

			~ Air Mixing Fans; Aluminum Panel & Prop; Tube Pressurizing Fan
RCAB	Fan-Jet Belt Drive	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCAD	Fan Jet-Direct Drive	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Air Mixing Fans; Hanging Fan; Basket Guard
HAF	Direct Drive Horizontal Air Flow Fan	0/0	Direct	0 cfm	12280 cfm	0.000 in wg	0.000 in wg	135 F

			~ Air Mixing Fans; Hanging Fan; Air Destratification Fan
TUB	Direct Drive Destratification Fan	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet Tubing; Polyethylene 4 mil Thick
TUBING-1	Tubing	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Hangers, Supt Wire, Band Straps
TUBINGAC	Tubing Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Weather Hood Package
RCWH	Fan Jet Hoods	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Fan Jet Accessories; Fan Jet; Heat Kit or Inlet Housing
RCIHWH	Inlet Housing Or Heat Kit	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCTH	Tube Hangers	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCWH	Fan Jet Hoods	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCWK	Supt Wire Assy	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
TUBINGAC	Tubing Accessories	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ HAF Accessories; HAF Mounting Bracket; Wall or Ceiling
Brackets	Brackets	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

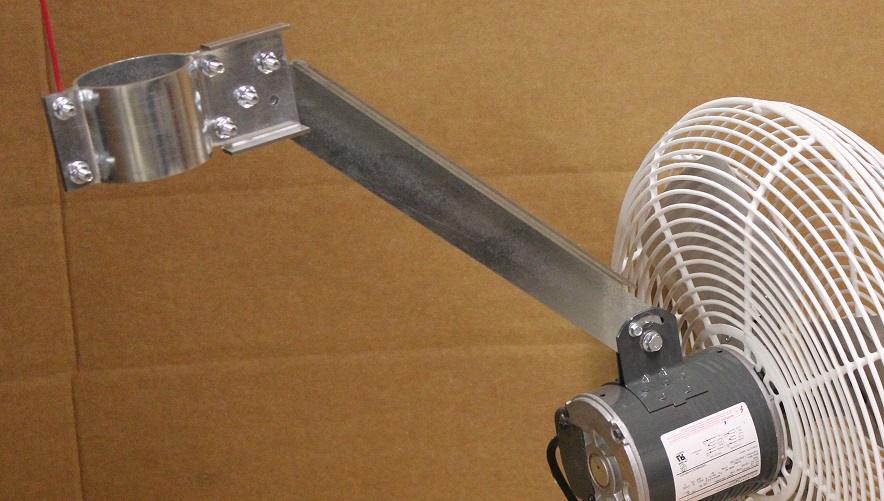

			~~ HAF Accessories; HAF Mounting Bracket; Pipe Mount
Pipe Mnt	Pipe Mount	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~~ Tubulator Accessories; Tubulator Basket Guard; Auxiliary Mount Support
TUBACC	Turbulator Accessory	0/0		0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F

			~ Air Mixing Fans; Powder Coated Steel Panel & Prop; Tube Pressurizing Fan
RCB	Fan-Jet Belt Drive	0/0	Belt	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
RCD	Fan-Jet Direct Drive	0/0	Direct	0 cfm	0 cfm	0.000 in wg	0.000 in wg	0 F
